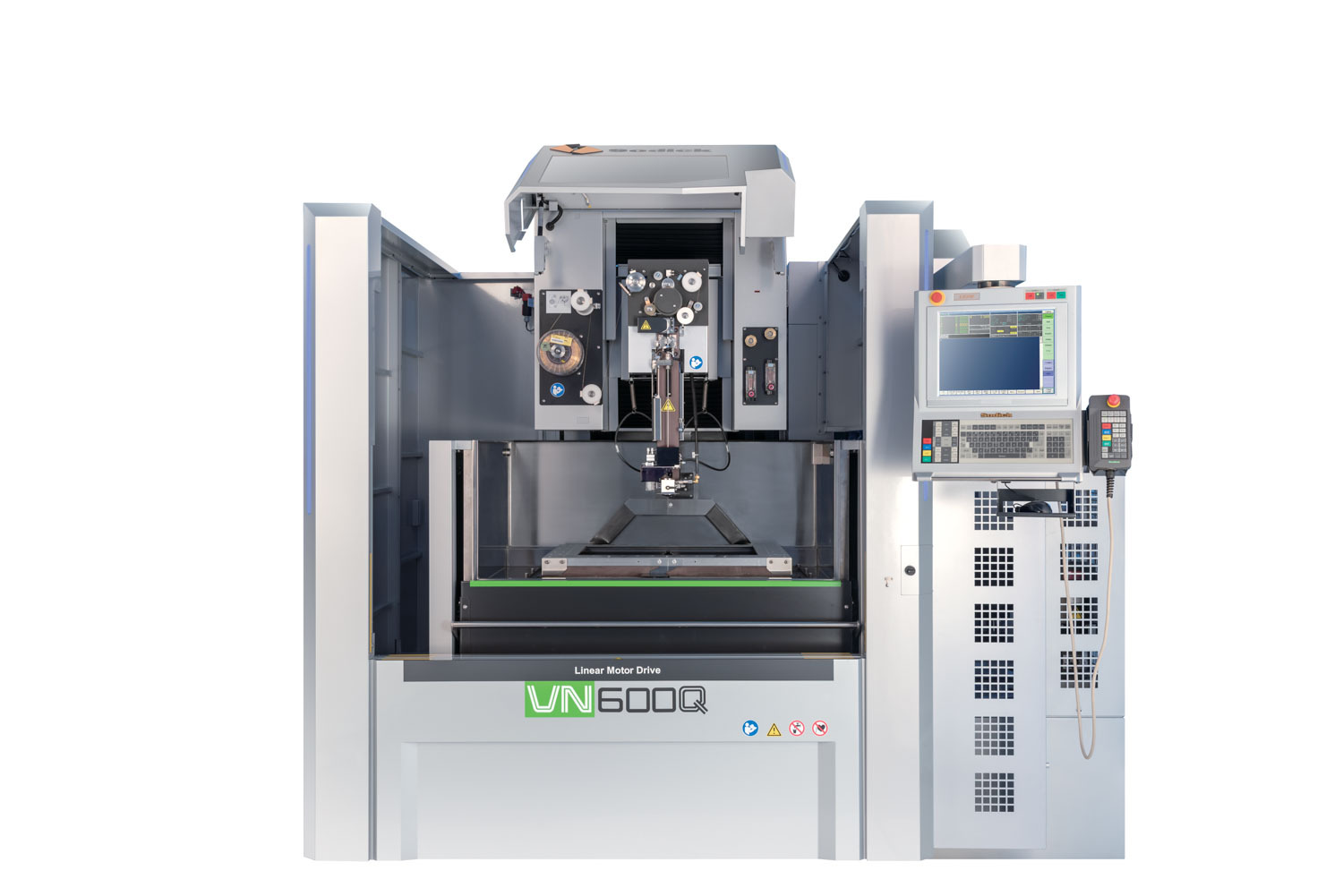

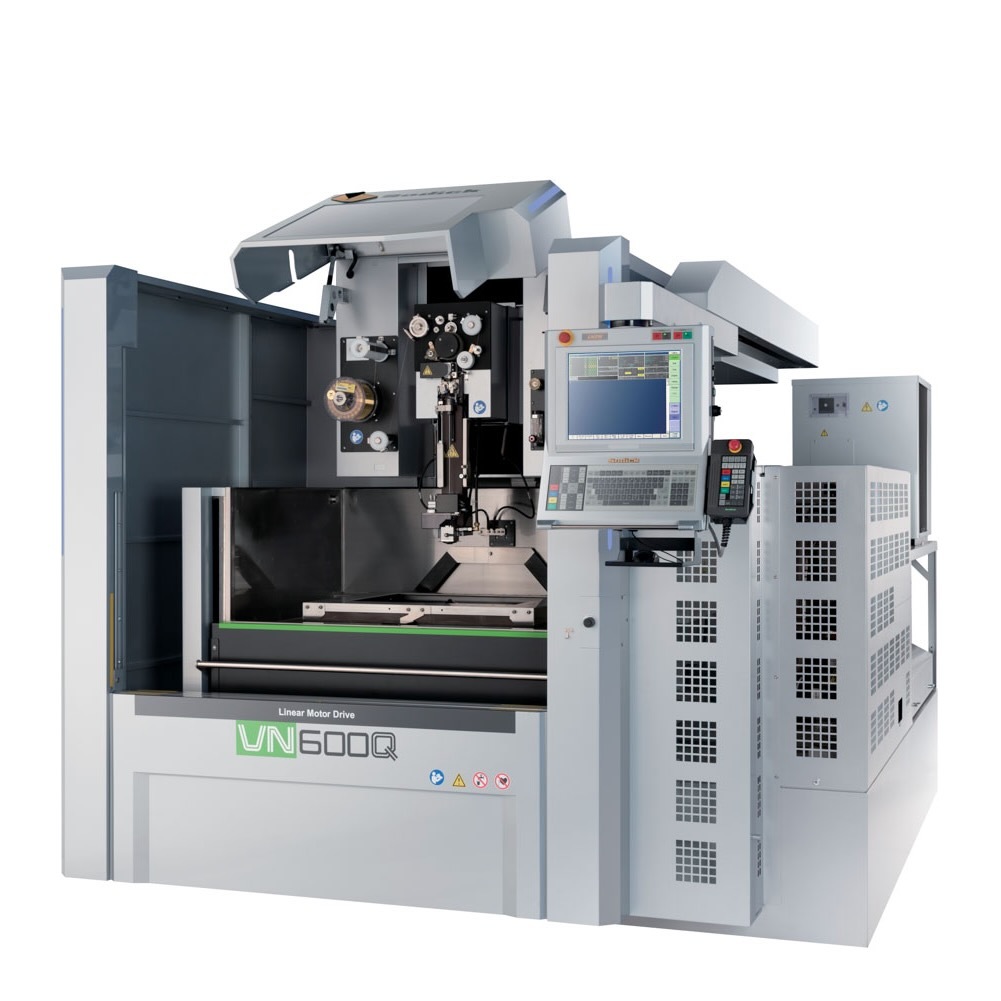

Sodick VN600Q Wire-cut EDM MachineVN600Q
Starting with the development of electrical discharge circuits, Sodick has continued to make untiring efforts in the research and development of advanced EDMs. Sodick’s philosophy has been the pursuit of the highest level of accuracy, speed, and versatility of machining in order to provide the highest quality products to its customers.
Sodick's: Power Supply Units, Discharge Units, Linear Motors, Motion Controllers, and Fine Ceramic Components have evolved as its five core technologies. These developments have positioned Sodick at the pinnacle of EDM technologies.
| X/Y/Z axis travel (mm): | 600 x 400 x 310 |
| U/V axis travel (mm): | 90 x 90 |
| Max. workpiece weight (kg): | 850 kg |
| Distance from floor to table top (mm): | 1,000 mm |
Features:
- 10 year warranty on positioning accuracy
- Linear motor (X, Y, U, V axis)
- Absolute linear scales (X, Y, U, V axis)
- Ceramic components
- LN3W generator
- Remote controller
- Improved Ease of Operation
- Energy saving circuit
- Automatic water level control
- Fixed Jet AWT with POP-up function
- Heart NC Software
- Wire end remover
- Dielectric cooling unit
- Voltage stabiliser
- LAN interface
- USB port
Options:
- Taper Flex NEO
- Jumbo Wire Feeder
- L-Cut (Wire chopper)
- WS4P/5P rotary table
