Large Sized, Taper Linear Motor, Premium Wire-cut EDM Machine with Smart Linear Technology

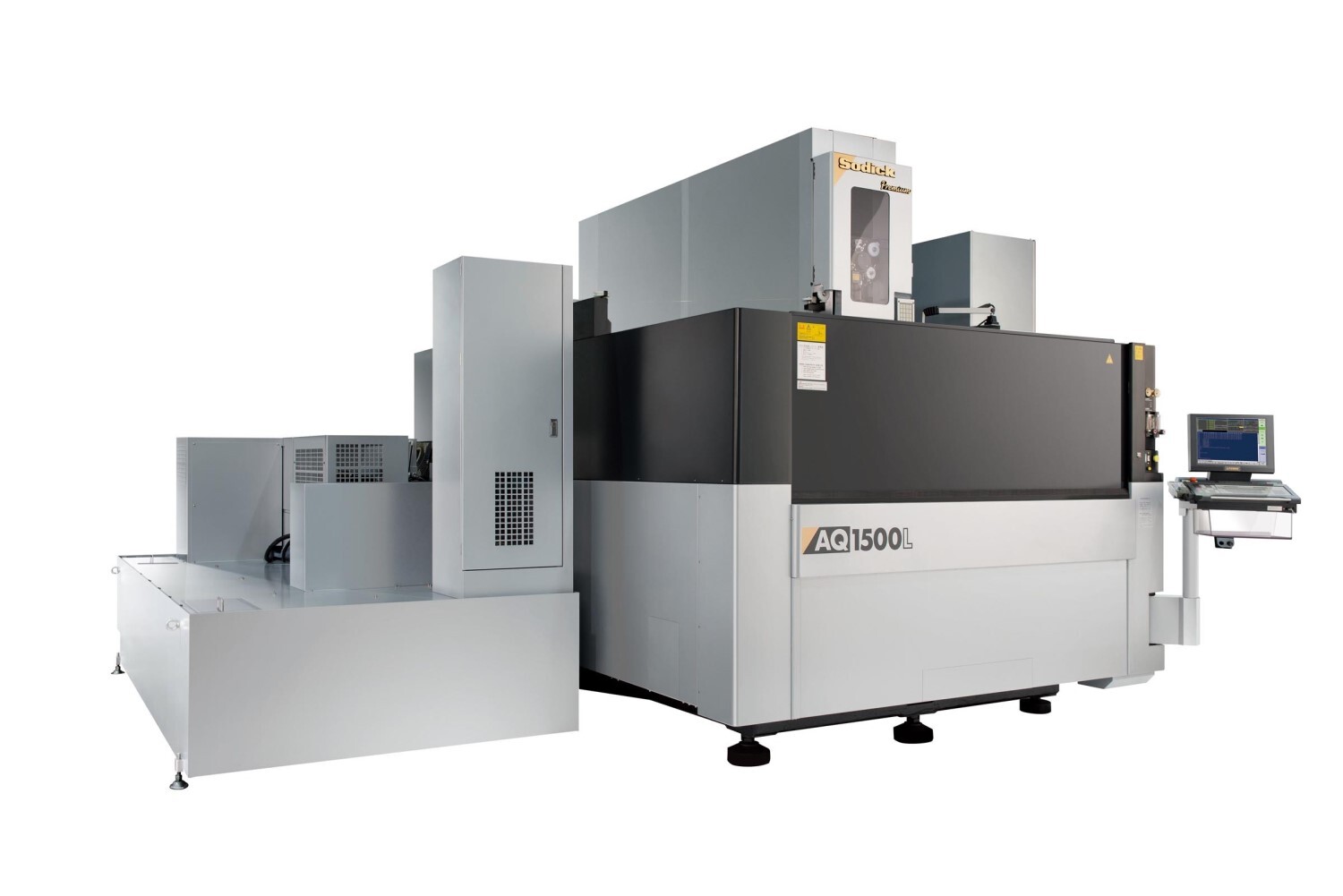

AQ1500L

Sodick 10 year guarantee

Sodick has now developed an even bigger linear wire-cut EDM; the AQ1500L Premium is now available in the product range.

The machine comes with all accuracy and quality which you would expect from Sodick. High speed, precision and accuracy with linear motors plus communication technology of 1Gbit/sec. It allows the work-piece with up to 600mm height as standard.

X/Y/Z axis travel (mm):1,500 x 1,000 x 600
U/V axis travel (mm):1,520 x 1,020
Max. workpiece weight (kg):8000
Distance from floor to table top (mm):1,200
Data Sheet

Features

  • 10 year warranty on positioning accuracy
  • Linear motor (X, Y, U, V axis)
  • Linear glass scales (X, Y, U, V axis)
  • Ceramic components
  • Linear motor cooling unit
  • LP2WH high speed generator
  • Perfect Active Control: 1Gbit/sec commnunication technology
  • Intelligent Q3vic EDW
  • Remote controller
  • Rise and fall work tank
  • Improved ease of operation
  • High speed electrolysis free circuit
  • SODICK Fine Corner Control
  • Energy saving circuit
  • Super PIKA finishing circuit
  • FTII (Fine pick-up function)
  • Automatic water level control
  • Wire chopper
  • Super jet AWT (Automatic wire threader)
  • Wire bobbin of 20kg
  • Wire end remover
  • Dielectric cooling unit
  • Active Power Restart (UPS)
  • Voltage stabiliser
  • LAN interface
  • 15“ TFT screen
  • USB port
  • Totalizing hour meter
  • Work light

Options

  • Taper flex 45 (for taper cutting up to 45º)
  • Oscilloscope
  • Custom color
