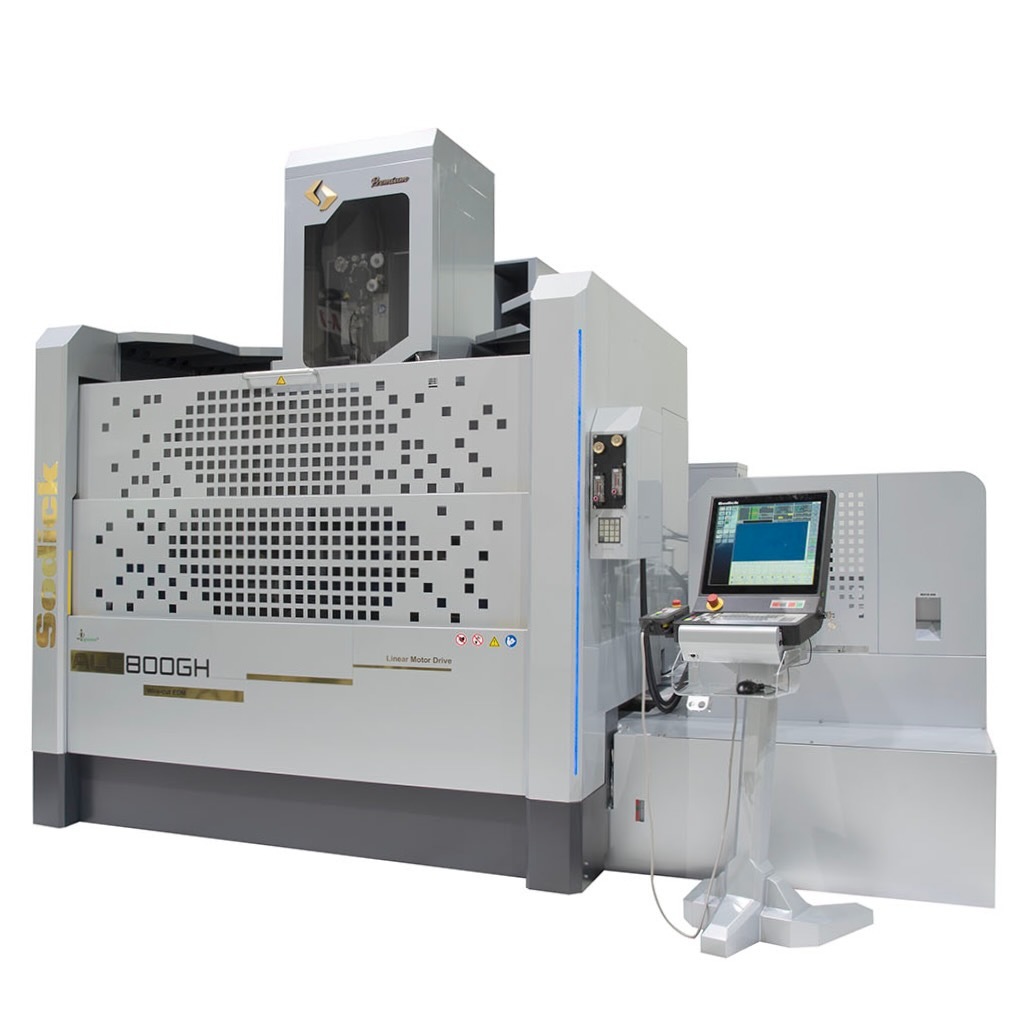

New High Performance with Smart Pulse and Rigid Linear Motor Wire-cut EDM Machine
ALC800GH
Based on the latest digital innovations in generator technologies and the use of advanced electrode materials, the new ALC range demonstrates considerable advances in cutting speed, accuracy and surface finish. This achievement was made possible through 15 years of Sodick Linear Technology.
To capitalise on the advances of the digital Smart Pulse generator and Sodick’s linear motor system, a new mechanical design was required. This new design resulted in a compact and fully enclosed machine tool which furthermore uses the latest human interface with a 19-inch touch screen colour control.
| X/Y/Z Axis Travel (mm) | 800 x 600 x 500 (Z 800mm Option) |
| U/V Axis Travel (mm) | 200 x 200 |
| Work Tank Dimensions (W x D x H, mm) | 1,410 x 1,110 |
| Maximum Workpiece Weight (kg) | 3,000 |
Features
- 10 year warranty on positioning accuracy
- Linear motor (X, Y, U, V axis)
- Absolute linear scales (X, Y, U, V axis)
- Sodick Motion Controller
- Ceramic Work-zone
- Remote controller
- 3-sided Rise and fall work tank
- Quadruple filtration system
- Improved ease of operation
- Advanced wire tension control
- SPW generator
- Fine Corner Control
- Energy saving circuit
- Digital PIKA W Plus for super surface finish
- DSF (Dynamic Shape First)
- Automatic water level control
- Fixed Jet AWT (Automatic wire threader)
- Wire end remover
- Dielectric cooling unit
- Voltage stabiliser
- LAN interface
- 19" TFT colour screen
- Intelligent Q3vic EDW
- Anti-virus Software
- USB port
- Work light
- Built-in 20kg wire feeder
- 20A Booster (total 60A)
Options
- HTP high-voltage circuit
- Taper flex 45 NEO (for taper cutting up to 45°)
- L-Cut (Wire chopper)
- Anti-Corrosion System (ANCS)
- Automation System
- WS4P/5P rotary table (indexing or simultaneous movement)
- 8-axis Simultaneous Control (Factory option)
- Active Power Restart (UPS)
