The XXXXL Linear

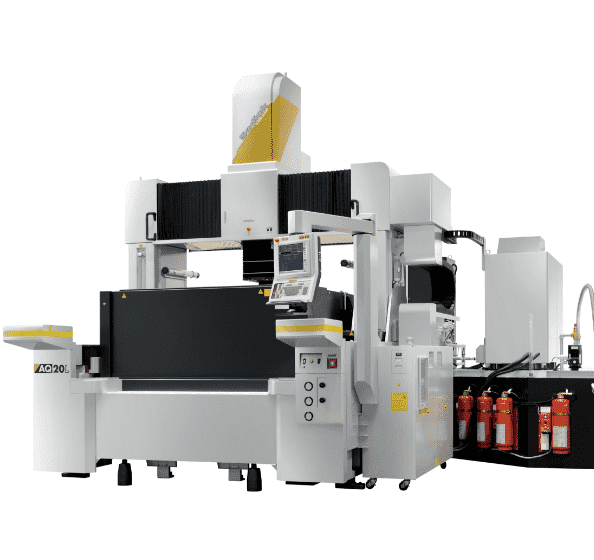

AQ20L

Sodick 10 year guarantee

The AQ20L is available in Sodick Linear EDM range for even bigger parts. Its work-tank is separated from machine unit; the weight of work-piece does not affect the movement of linear motor drive, which promises to make the most of linear motors’ performance.

X/Y/Z axis travel (mm):1,200 x 2,000 x 600
Table dimensions (W x D, mm):1,500 x 2,000
Work tank dimensions (W x D x H, mm):1,900 x 2,590 x 800
Work tank fluid level (Min. to Max., mm):400 ~ 750
Data Sheet

Features

  • 10 year warranty on positioning accuracy
  • Linear motor (X/Y/Z axis)
  • Absolute linear scale (X/Y/Z axis)
  • Ceramic components
  • Linear motor cooling unit
  • Dielectric fluid cooling unit
  • 1Gbit/sec communication technology
  • SVC circuit
  • “SGF Plus” Nano-Wear Discharge Unit
  • Improved Ease of Operation
  • Remote controller
  • LN Professional software for optimum condition search
  • Clamping chuck
  • LAN interface
  • USB port
  • 15” TFT screen
  • Work light

Options

  • C-axis SEC10 (20 rpm)
  • ATC Unit (8, 16, 32-station)
  • SCF72P High-precision rotary head (2000 rpm)
  • 80A Booster
  • STP Circuit (for hard metal cutting)
  • Oscilloscope
  • Active Power Restart (UPS)
  • Intelligent Q³vic EDM
  • Automation system
  • 8-axis simultaneous control LN20 (Factory option)
  • Custom Colour
