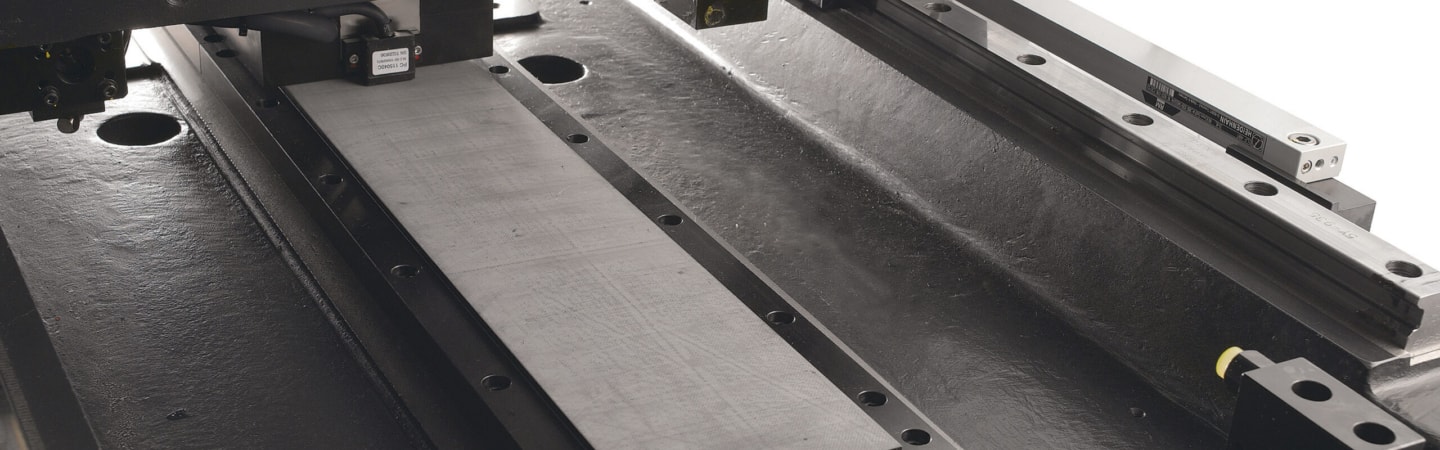

Linear motor axis drives (standard - X,Y,U,V axis)

Advantages of linear motor drives

  • eliminates ball screw drives
  • no back lash or lost motion
  • best part geometry & finish with reduced skim passes
  • fewer wire breaks
  • increase cutting speed
  • no maintenance

Don’t get ball screwed

Over time ball screws will wear, creating scrapped parts; but since linear motor drives eliminate the need for ball screws, they have also eliminated the possibility of scrap parts

How linear motor drives work

  • Linear drives contain the same components as a servo motor (magnets & copper coils).
  • A linear motor is an uncoiled servo motor.
  • As amperage enters the coils, it creates force that is repelled against the magnets.
  • The motor is also the driving force thus eliminating the need for a ball screw.

Linear motors = No Ball Screws

  • worn ball screws can create scrapped parts & downtime
  • ball screw replacement parts can cost as much as €5.000
  • with linear motor drives you will never worry about this

Sodick Linear Motor Display

For the best experience, please watch in HD. Click the settings iconin the bottom right corner of the video player and select 1080p where available.

Sodick's linear motor's speed and acceleration are displayed in this video.

Sodick's Linear Motor Vibration Test

For the best experience, please watch in HD. Click the settings iconin the bottom right corner of the video player and select 1080p where available.

A nickel balances on the chuck (traveling at 1,400"/min) of a Sodick CNC sinker EDM.

Linear Motor and Ball Screw drive comparison

For the best experience, please watch in HD. Click the settings iconin the bottom right corner of the video player and select 1080p where available.

Animated comparison of a linear motor and ball screw drive.
